當前位置：首頁 > 產品展示 > 蘇州臺達觸摸屏代理商 臺達觸摸屏人機界面
蘇州臺達觸摸屏代理商 臺達觸摸屏人機界面
2020/2/8 22:47:31
| HMI | W系列內置二組以太網型//65536色TFT/打印/U盤/鼠標 | |
| HMI | DOP-W157B | 15.1" 4:3屏/分辨率1024×768/SD卡, COM2:RS-232 / 422 / 485, COM3:RS-232 / 422 / 485, 開孔尺寸:372.4*283.7, 金屬殼 |
| HMI | DOP-W127B | 12.1" 4:3屏/分辨率1024×768/SD卡, COM2:RS-232 / 422 / 485, COM3:RS-232 / 422 / 485, 開孔尺寸:302.7*228.7, 金屬殼 |
| HMI | DOP-W105B | 10.4" 4:3屏/分辨率800×600/SD卡, COM2:RS-232 / 422 / 485, COM3:RS-232 / 422 / 485, 開孔尺寸:285.2*210.2, 塑殼 |
| HMI | B系列通用型HMI | |
| HMI | DOP-B10S411 | 10"寬屏/分辨率800×480/打印/U盤/鼠標, COM1:RS232, COM2:RS-232/485, COM3:RS-232/422/485, 開孔尺寸:261.3 x 189.3 |
| HMI | DOP-B07S411 | 7"寬屏/分辨率/800x480/U盤/打印機/鼠標, COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:196.9 x 142.9 |
| HMI | DOP-B07S410 | 7"寬屏/分辨率800x480/COM1:RS-232(支持流量控制)/RS-422/RS-485, 開孔尺寸:196.9 x 142.9 |
| HMI | DOP-B07SS411 | 7"寬屏/分辨率800x480/ COM1:RS-232(支持流量控制)/RS-422/RS-485, 開孔尺寸:196.9 x 142.9 |
| HMI | DOP-B03S210 | 4.3"寬屏/分辨率480*272, COM1:RS-232(支持流量控制)/RS-422/RS-485, 開孔尺寸:118.8 x 92.8 |
| HMI | B系列升級型HMI | |
| HMI | DOP-B10S615 | 10.1"寬屏/分辨率1024x600/SD卡, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:261.3 x 189.3 |
| HMI | DOP-B10S511 | 10.4"4:3屏/分辨率800x600, COM1:RS232, COM2:RS-232/485, COM3:RS-232/422/485, 開孔尺寸:285.2 x 210.2 |
| HMI | DOP-B08S515 | 8" 4:3屏幕/分辨率800x600/SD卡, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:219.4 x 166.5 |
| HMI | DOP-B07S415 | 7"寬屏/分辨率800x480/SD卡, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:196.9 x 142.9 |
| HMI | DOP-B07S515 | 7" 4:3屏幕/分辨率800x600/SD卡, COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:172.4 x 132.4 |
| HMI | DOP-B05S111 | 5.6" 4:3屏幕/分辨率320x234/8M Flash, COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:172.4 x 132.4 |
| HMI | DOP-B03S211 | 4.3" 寬屏/分辨率480*272, COM1:RS232/485, COM2:RS-422/485, 開孔尺寸:118.8 x 92.8 |
| HMI | B系列內置以太網型HMI | |
| HMI | DOP-B10E615 | 10.1"寬屏/分辨率1024x600/SD卡, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:261.3 x 189.3 |
| HMI | DOP-B10E515 | 10.4"4:3屏/分辨率800x600/SD卡, COM1:RS232, COM2:RS-232/485, COM3:RS-232/422/485, 開孔尺寸:285.2 x 210.2 |
| HMI | DOP-B08E515 | 8" 4:3屏幕/分辨率800x600/SD卡, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:219.4 x 166.5 |
| HMI | DOP-B07E415 | 7"寬屏/分辨率800x480/SD卡, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:196.9 x 142.9 |
| HMI | DOP-B07E515 | 7" 4:3屏幕/分辨率800x600/SD卡, COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:172.4 x 132.4 |
| HMI | DOP-B07E411 | 7"寬屏/分辨率/800x480,COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:196.9 x 142.9 |
| HMI | DOP-B03E211 | 4.3" 寬屏/分辨率480*272, COM1:RS232/485, COM2:RS-422/485, 開孔尺寸:118.8 x 92.8 |
| HMI | B系列內置機械按鈕型HMI | |
| HMI | DOP-B07S401K | 7"寬屏/分辨率800x480/8個機械按鈕, COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:196.9 x 142.9 |
| HMI | DOP-B07S411K | 7"寬屏/分辨率800x480/8個機械按鈕(平板型), COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:196.9 x 142.9 |
| HMI | B系列內置電子凸輪和G碼功能型HMI | |
| HMI | DOP-B10PE515 | 10.4"4:3屏/分辨率800x600/SD卡, COM1:RS232, COM2:RS-232/485, COM3:RS-232/422/485, 開孔尺寸:285.2 x 210.2 |
| HMI | DOP-B07PS415 | 7"寬屏/分辨率800x480/SD卡, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:196.9 x 142.9 |
| HMI | DOP-B07PS515 | 7" 4:3屏幕/分辨率800x600/SD卡, COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:172.4 x 132.4 |
| HMI | B系列內置DMV控制畫面和VGA接口 | |
| HMI | DOP-B10VS511 | 10.4"4:3屏/分辨率800x600, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:285.2 x 210.2 |
| HMI | H系列手持型HMI | |
| HMI | DOP-H07S425 | 7"寬屏/分辨率800x480/SD卡, RS-422／RS-485(Note 2), 出線長度5米 |
| HMI | DOP-H07E425 | 7"寬屏/分辨率800x480/SD卡, Ethernet*1, 出線長度5米 |
| HMI | DOP-H07S42A | 7"寬屏/分辨率800x480/SD卡, RS-422／RS-485(Note 2), 出線長度10米 |
| HMI | DOP-H07E42A | 7"寬屏/分辨率800x480/SD卡, Ethernet*1, 出線長度10米 |
| HMI | DOP-H07S465 | 7"寬屏/分辨率800x480/SD卡, RS-422／RS-485(Note 2), 手搖輪, 出線長度5米 |
| HMI | DOP-H07E465 | 7"寬屏/分辨率800x480/SD卡, Ethernet*1, 手搖輪, 出線長度5米 |
| HMI | DOP-H07S46A | 7"寬屏/分辨率800x480/SD卡, RS-422／RS-485(Note 2), 手搖輪, 出線長度10米 |
| HMI | DOP-H07E46A | 7"寬屏/分辨率800x480/SD卡,Ethernet*1, 手搖輪, 出線長度10米 |
| TP | 7"觸控屏, 分辨率800x480點陣 256K FLASH, 萬年歷, DC24V供電 | |
| TP | TP70P-RM0 | COM2:RS232, COM3:RS485, 開孔尺寸;191x128, 只支持臺達連接PLC產品 |
| TP | TP70P-RM1 | COM2:RS232, COM3:RS422/485, 開孔尺寸;191x128 , 支持三菱/歐姆龍/西門子/松下 |
| TP | 文本顯示器, DC24V供電 | |
| TP | TP02G-AS1 | 單色STN 2行顯示 160*32點陣 256K FLASH 無萬年歷,COM1:RS232, COM2:RS485/422, 開孔尺寸: 36.5x85 |
| TP | TP04G-AS2 | 單色STN 4行顯示 128*64點陣 256K FLASH 有萬年歷, RS232, COM2:RS485/422, 開孔尺寸: 36.5x85 |
| TP | TP04G-AL2 | 單色STN 4行顯示 192*64點陣 256K FLASH 有萬年歷,RS232,COM2:RS485/422, 開孔尺寸: 152x97 |
| TP | TP04G-AL-C | 單色STN 4行顯示 192*64點陣 256K FLASH 有萬年歷,RS232,COM2:無, 開孔尺寸: 152x97 |
| TP | TP04G-BL-C | 單色STN 4行顯示 192*64點陣 256K FLASH 有萬年歷,RS232,COM2:無, 開孔尺寸: 164x97 |
| TP | TP04G-BL-CU | 單色STN 4行顯示 192*64點陣 256K FLASH, RS232,萬年歷和COM2:無，USB下載, 開孔尺寸: 164x97 |
| TP | TP08G-BT2 | 單色STN 8行顯示 240*128點陣 1M FLASH 有萬年歷,RS232,COM2:RS485/422, 開孔尺寸: 198x110.5 |
| TP | 7"觸控屏PLC一體機, 分辨率800x480點陣 256K FLASH, 萬年歷, DC24V供電 | |
| TP | TP70P-16TP1R | TP070G 內置/8DI/8DO(繼電器/250Vac/24Vdc/2A), COM2:RS485, COM3:RS485, 開孔尺寸;191x12 |
| TP | TP70P-32TP1R | TP070G 內置/16DI/16DO(繼電器/250Vac/24Vdc/2A), COM2:RS485, COM3:RS485, 開孔尺寸;191x12 |
| TP | TP70P-22XA1R | TP070G 內置/8DI/8DO(繼電器/250Vac/24Vdc/2A), 4AI/2AO, COM2:RS485, COM3:RS485, 開孔尺寸;191x12 |
| TP | TP70P-21EX1R | TP070G 內置/8DI/8DO(繼電器/250Vac/24Vdc/2A), 2PT/2AI(電流型)/1AO, COM2:RS485, COM3:RS485, 開孔尺寸;191x12 |
| TP | TP70P-16TP1T | TP070G 內置/8DI/8DO(晶體管24Vdc/0.5A), COM2:RS485, COM3:RS485, 開孔尺寸;191x12 |
| TP | TP70P-32TP1T | TP070G 內置/16DI/16DO(晶體管24Vdc/0.5A), COM2:RS485, COM3:RS485, 開孔尺寸;191x12 |
| TP | TP70P-22XA1T | TP070G 內置/8DI/8DO(晶體管24Vdc/0.5A), 4AI/2AO, COM2:RS485, COM3:RS485, 開孔尺寸;191x12 |
| TP | TP70P-21EX1T | TP070G 內置/8DI/8DO(晶體管24Vdc/0.5A), 2PT/2AI(電流型)/1AO, COM2:RS485, COM3:RS485, 開孔尺寸;191x12 |
| TP | 文本PLC一體機,內置PLC, DC24V供電 | |
| TP | TP04P-16TP1R | TP04G-BL文本顯示器內置/8DI/8DO(繼電器/250Vac/24Vdc/2A), RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97 |
| TP | TP04P-32TP1R | TP04G-BL文本顯示器內置/16DI/16DO(繼電器/250Vac/24Vdc/2A), RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97 |
| TP | TP04P-22XA1R | TP04G-BL文本顯示器內置/8DI/8DO(繼電器/250Vac/24Vdc/2A), 4AI/2AO, RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97 |
| TP | TP04P-21EX1R | TP04G-BL文本顯示器內置/8DI/8DO(繼電器/250Vac/24Vdc/2A), 2PT/2AI(電流型)/1AO, RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97 |
| TP | TP04P-16TP1T | TP04G-BL文本顯示器內置/8DI/8DO(晶體管24Vdc/0.5A), RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97 |
| TP | TP04P-32TP1T | TP04G-BL文本顯示器內置/16DI/16DO(晶體管24Vdc/0.5A), RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97 |
| TP | TP04P-22XA1T | TP04G-BL文本顯示器內置/8DI/8DO(晶體管24Vdc/0.5A), 4AI/2AO, RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97 |
| TP | TP04P-08TP1R | |
| TP | TP04P-21EX1T | TP04G-BL文本顯示器內置/8DI/8DO(晶體管24Vdc/0.5A), 2PT/2AI(電流型)/1AO, RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97 |

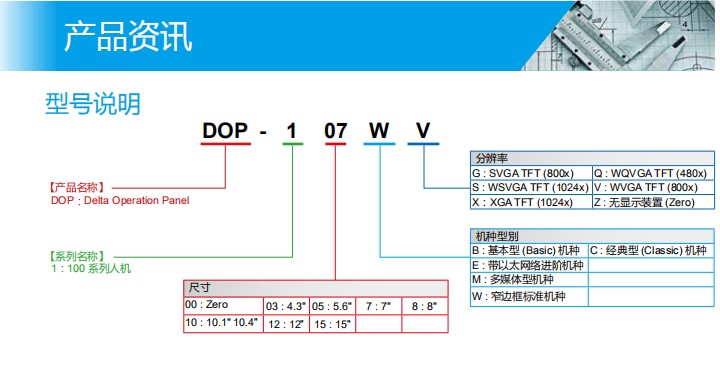

| HMI | DOP100 新一代HMI | |

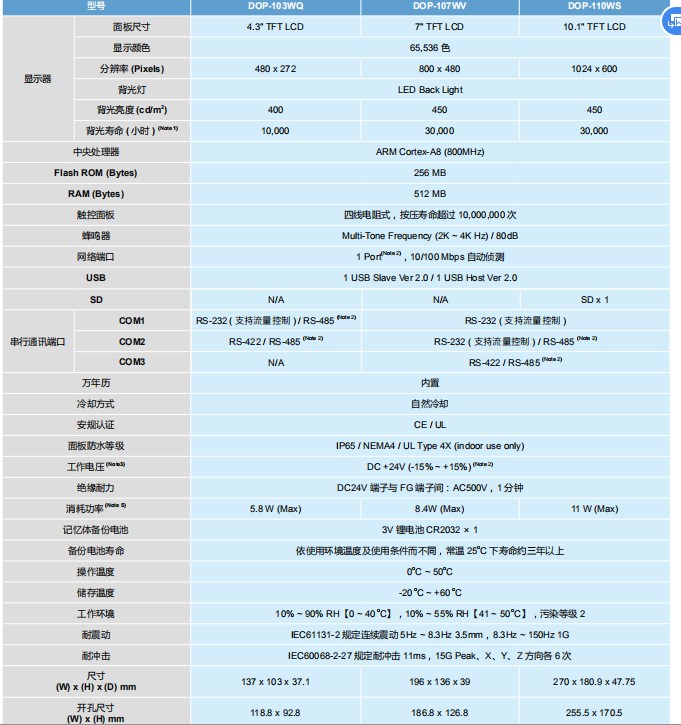

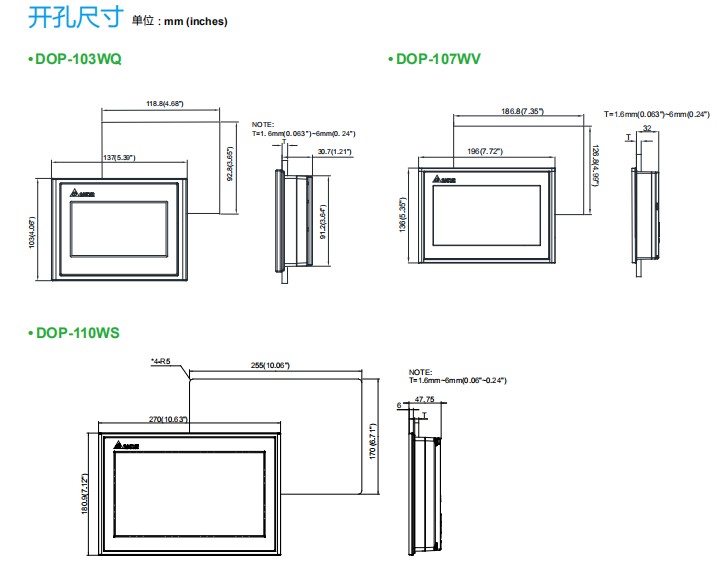

| HMI | DOP-107WV | 7"/分辨率800x480/U盤/打印機/鼠標/集成以太網/窄邊框， 高亮度大于400流明，COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, |
| HMI | DOP-110WS | 10.1"/分辨率1024x600/U盤/打印機/鼠標/集成以太網/窄邊框， 高亮度大于400流明，COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, |

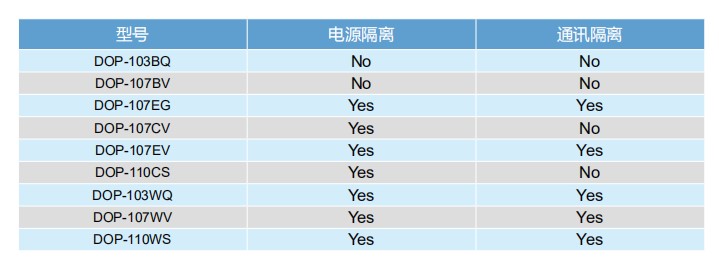

| HMI | DOP-103WQ | 4.3" TFT LCD 480 x 272 4-wire resistive touch screen> 10,000,000 operated RS-232／RS-422／RS-485 (has built-in isolated power circuit) 亮度400, |

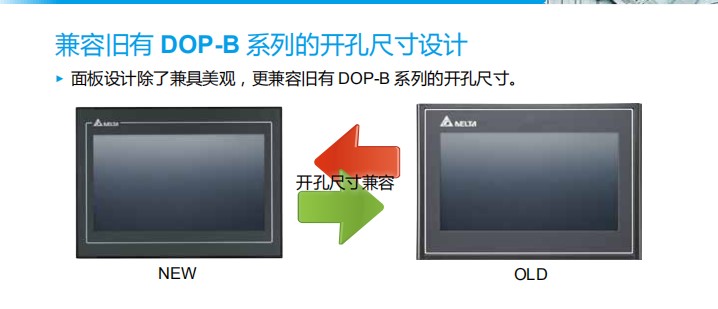

| HMI | DOP100B，替換原有DOP-B系列 | |

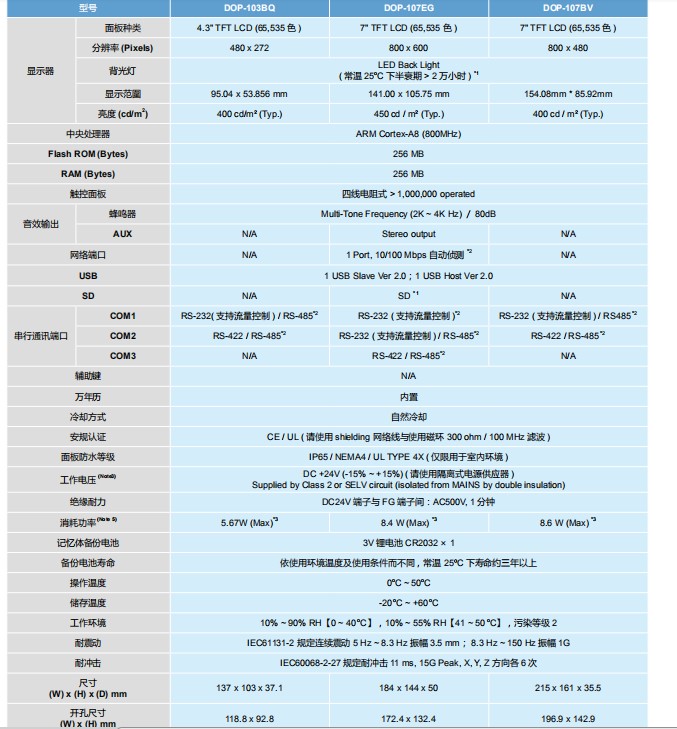

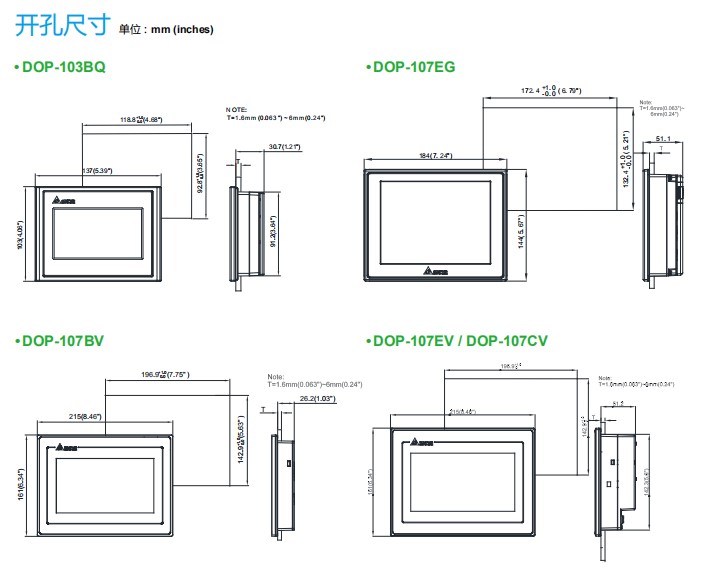

| HMI | DOP-103BQ | 4.3"/分辨率480×272/U盤/打印機/鼠標，高亮度500cd/㎡，COM1:RS-232/485, COM2:RS-422/485,COM3:N/A |
| HMI | DOP-107BV | 7"/分辨率800×480/U盤/打印機/鼠標，高亮度400cd/㎡，COM1:RS-232/485, COM2:RS-422/485,COM3:N/A |

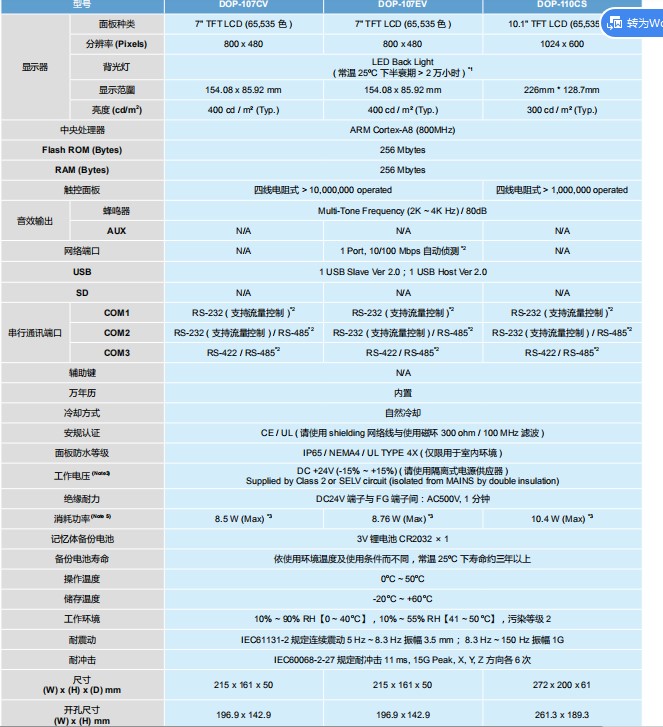

| HMI | DOP-107CV | 7"/分辨率800×480/U盤/打印機/鼠標，高亮度400cd/㎡，COM1:RS-232, COM2:RS-232/485,COM3: RS-422/485 |
| HMI | DOP-107EV | 7"/分辨率800×480/U盤/打印機/鼠標/集成以太網，高亮度400cd/㎡，COM1:RS-232, COM2:RS-232/485,COM3: RS-422/485 |
| HMI | DOP-107EG | 7"/分辨率800×600/U盤/打印機/鼠標/集成以太網/窄邊框，高亮度450cd/㎡，COM1:RS-232, COM2:RS-232/485,COM3: RS-422/485 |

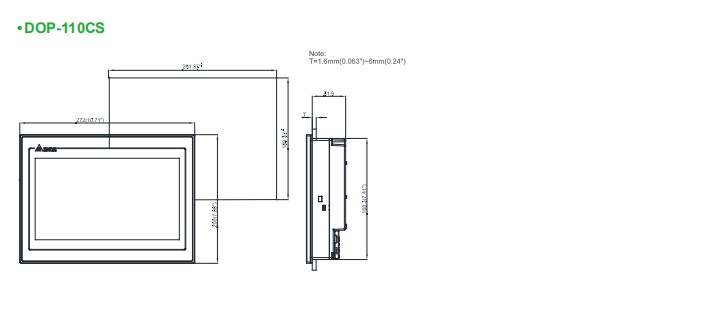

| HMI | DOP-110CS | 10.1"/分辨率1024×600/U盤/打印機/鼠標，高亮度300cd/㎡，COM1:RS-232, COM2:RS-232/485,COM3: RS-422/485 |
| HMI | DOP-110ES | 10.1"/分辨率1024×600/U盤/打印機/鼠標/集成以太網，高亮度300cd/㎡，COM1:RS-232, COM2:RS-232/485,COM3: RS-422/485 |
